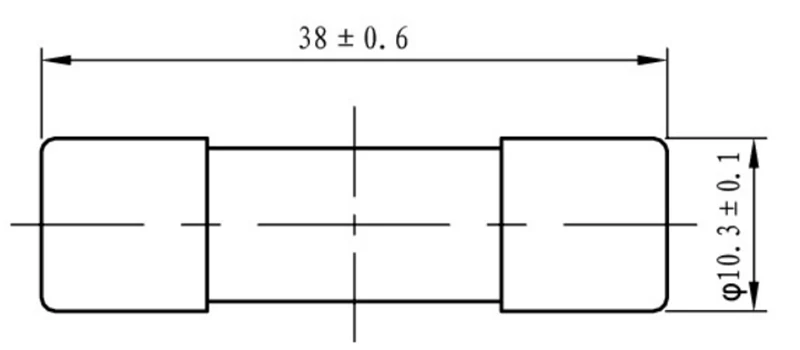

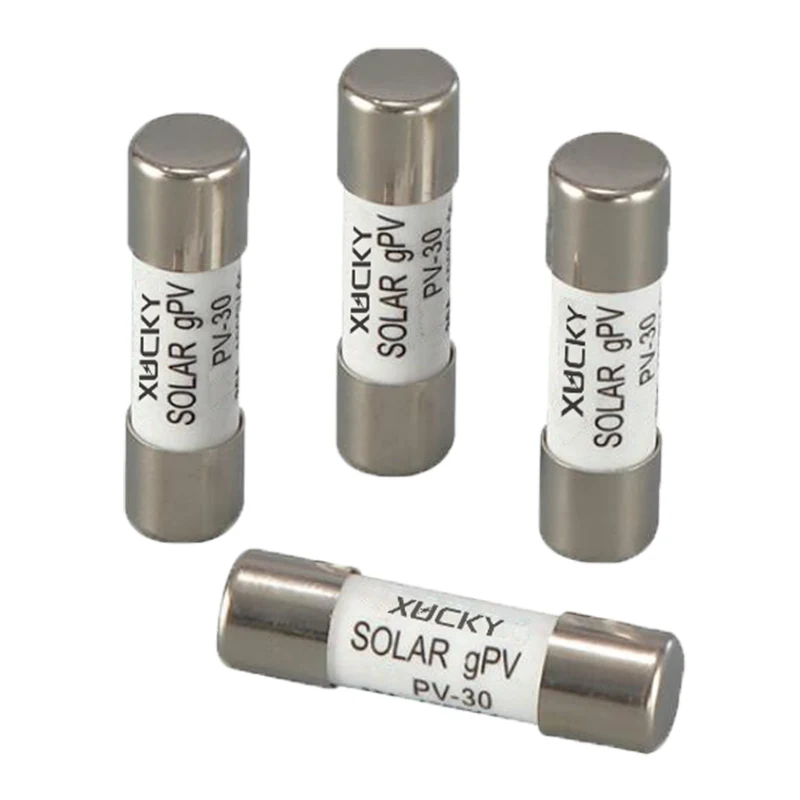

PV-30S 1500VDC Solar Pv-ni sug'urtalash havolasi (ph10.3x38) mm
● Qarama-qarshi kuchlanish: 1500VDC
● Amaldagi baholash: 2a ~ 30a
● Pretectin toifasi: GPV-ning to'liq diapazoni
● Breaklash qobiliyati: 15ka 20ka
● TME Doimiy: 1-3ms
● IEC60269-6
● ul248-19
● PV tarmog'i qutisi - Quyosh PV modulini himoya qilish
● Kam harorat ko'tarilishi, kam quvvat sarfi va uzoq vaqt xizmat ko'rsatish muddati
● standartlashtirilgan o'lcham va kompakt tuzilish
● Qo'llaniladigan ega va bazasi
● PV-30 (x)
● PV-30 (klip)
|
Mahsulot kod |
Baholash hozirgi |
Sindirib tashlash sig'im |
Kuch
yo'qotish |
Sof vazn |
|
PV30S / 02NF |
2a |
1500VDCC TUV & CE: 15ka UL: 20ka |
0.9 |
10 g |
|
PV30S / 03NF |
3a |
1.0 |
||
|
PV30S / 04NF |
4a |
1.2 |
||
|
PV30S / 05NF |
5a |
1.3 |
||
|
PV30S / 06NF |
6a |
1.5 |
||
|
PV30S / 08NF |
8a |
1.8 |
||
|
PV30S / 10NF |
10a |
2.2 |
||
|
PV30S / 12NF |
12a |
2.3 |
||
|
PV30S / 15NF |
15a |
2.7 |
||
|
PV30S / 20NF |
20a |
3.2 |
||
|
PV30S / 25NF |
25a |
3.8 |
||
|
PV30S / 30NF |
30a |
4.5 |
|
Standart: ul248-19 |
Standard: IEC60269-6 |
||
|
135% ichida |
200% ichida |
113% ichida |
145% ichida |
|
<1h qizg'in |
<240s qizg'in |
> 1H sezmaslik |
<1h qizg'in |
