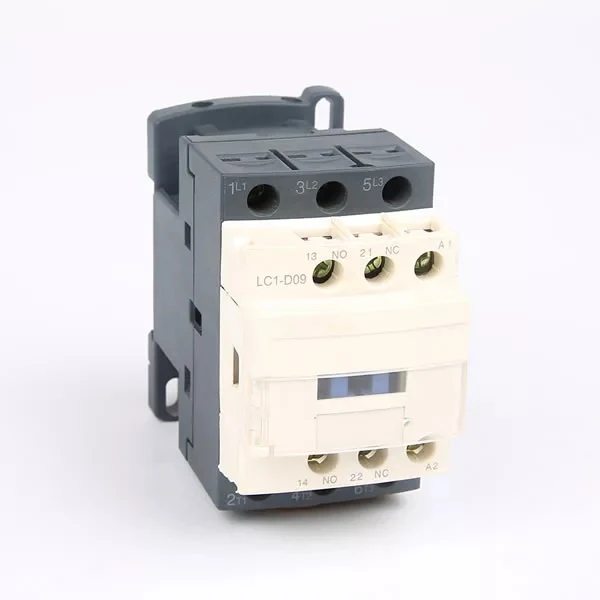

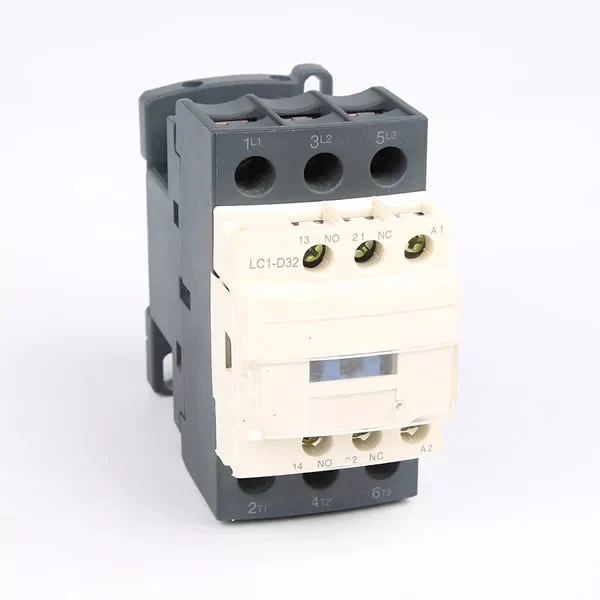

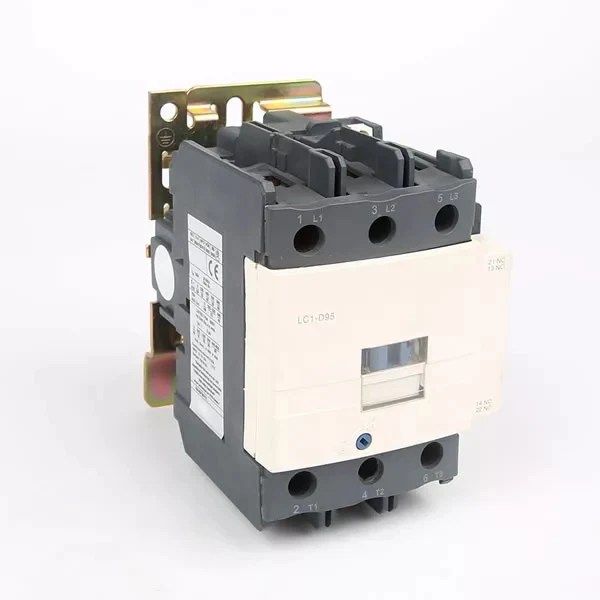

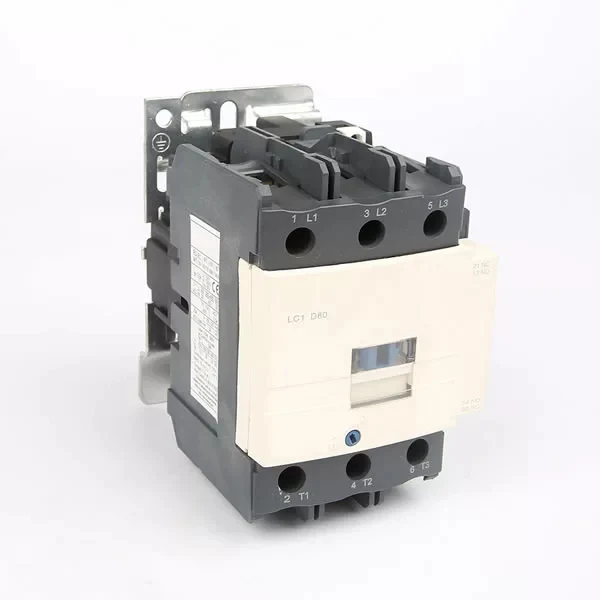

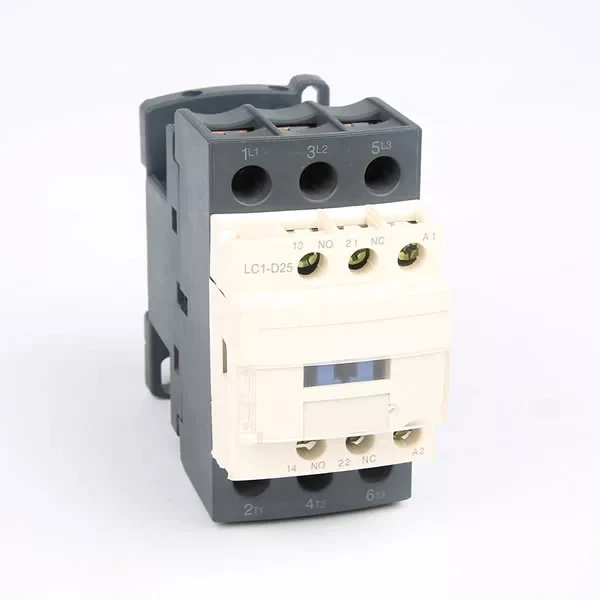

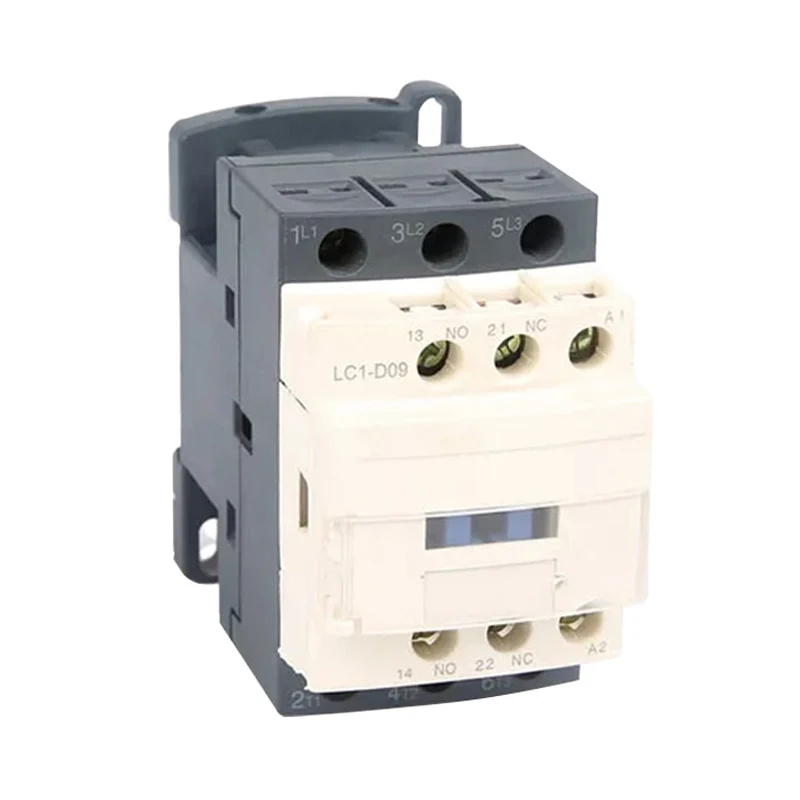

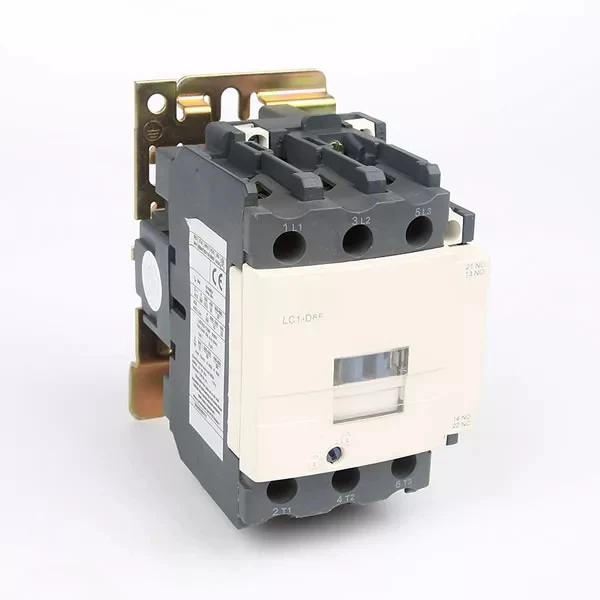

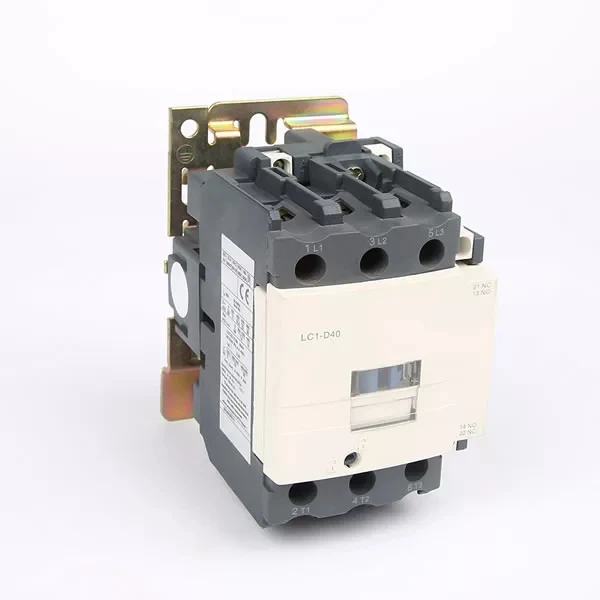

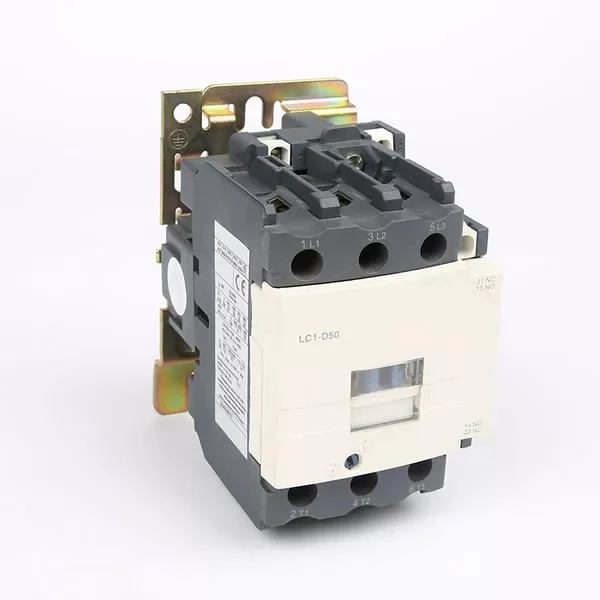

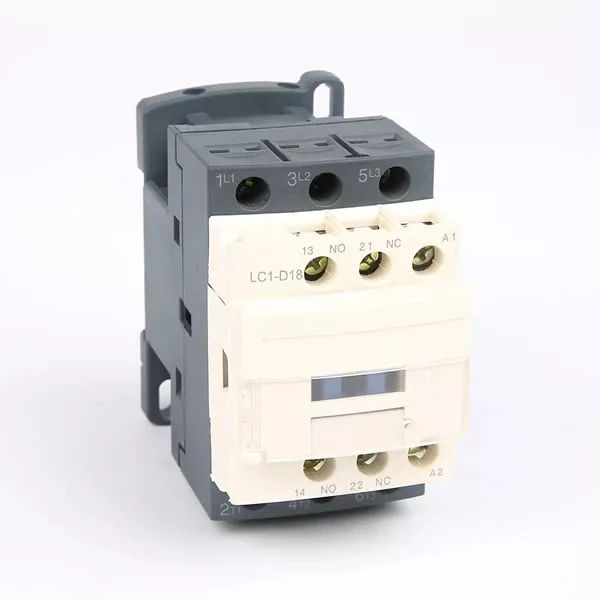

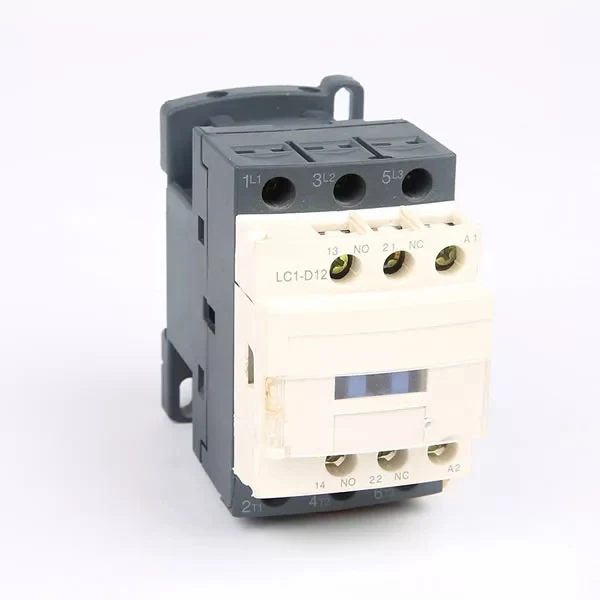

LC1-D AC kontaktori

XUCKY Electric Xitoyda keng ko'lamli LC1-D AC kontaktor ishlab chiqaruvchisi va yetkazib beruvchisidir. Ko'p yillar davomida biz modulli elektr terminal uskunalariga ixtisoslashganmiz, mahsulotlarimiz yaxshi narx ustunligiga ega va Evropa va Amerika bozorlarining ko'p qismini qamrab oladi. Biz sizning Xitoyda uzoq muddatli hamkoringiz bo'lishni intiqlik bilan kutamiz.

So'rov yuborish

Mahsulot tavsifi

LC1-D AC kontaktorining UMUMI

●1.1 Sertifikatlar: Idoralar;

●1.2 Elektr quvvatlari: AC50/60Hz, 690V, 620A gacha;

●1.3 Ilova: masofadan turib ishlab chiqarish va uzish davrlarini, termal haddan tashqari yuk o'rni bilan yig'ishda zanjirni ortiqcha yukdan himoya qilish, AC motorini tez-tez ishga tushirish va boshqarish;

●1.4 Foydalanish toifasi: AC-3, AC-4;

●1,5 Balandlik:≤2000m;

●1,6 Atrof-muhit harorati: -5℃~ +40℃;

●1.7 O'rnatish toifasi: Ⅲ;

●1.8 O'rnatish shartlari: o'rnatish tekisligi va vertikal tekislik orasidagi moyillik 5° dan oshmasligi kerak;

●1.9 Standart: IEC/EN 60947-4-1.

LC1-D AC kontaktorining TEXNIK MA'LUMOTI

Elementlar		Model	LC1-D09	LC1-D12	LC1-D18	LC1-D25	LC1-D32
qutb			3/4	3/4	3/4	3/4	3/4
Yordamchi aloqa			1NO+1NC	1NO+1NC	1NO+1NC	1NO+1NC	1NO+1NC
Nominal an'anaviy isitish oqimi (A) AC-1			20	20	30	40	50
Operatsion deb baholangan joriy (A)	380/400V	AC-1 AC-4	9	12	18	25	32
	380/400V	AC-1 AC-4	3.5	5	7.7	8.5	12
	660/690V	AC-3 AC-4	6.6	8.9	12	18	21
	660/690V	AC-3 AC-4	1.5	2	3.8	4.4	7.5
Nominal izolyatsiya kuchlanishi (V AC)			690	690	690	690	690
Boshqariladigan quvvat 3 fazali qafas motori (AC-3)	kVt	220/230V AC 380/415V AC 660/690V AC	2.2	3	4	5.5	7.5
			4	5.5	7.5	11	15
			5.5	7.5	10	15	18.5
AC bobini (V)			24, 36, 48, 110, 127, 220, 240, 380, 415, 440, 480, 500, 600
DC bobini (V)			24，36，48，110，220

Elementlar		Model	LC1-D40	LC1-D50	LC1-D65	LC1-D80	LC1-D95
qutb			3/4	3/4	3/4	3/4	3/4
Yordamchi sxema Cat:AC-15,Ue=4 15V le=0,95A Ith=10A			1NO+1NC	1NO+1NC	1NO+1NC	1NO+1NC	1NO+1NC
Nominal an'anaviy isitish oqimi (A) AC-1			60	80	80	110	110
Operatsion deb baholangan joriy (A)	380/400V	AC-3 AC-4	40	50	65	80	95
	380/400V	AC-3 AC-4	18.5	24	28	37	44
	660/690V	AC-3 AC-4	34	39	42	49	49
	660/690V	AC-3 AC-4	9	12	14	17.3	21.3
Nominal izolyatsiya kuchlanishi (V AC)			690	690	690	690	690
Boshqariladigan quvvat 3 fazali qafas motori (AC-3)	KVt	220/230V AC 380/415V AC 660/690V AC	11	15	18.5	22	25
			18.5	22	30	37	45
			30	37	37	45	45
AC bobini (V)			24, 36, 48, 110, 127, 220, 240, 380, 415, 440, 480, 500, 600
DC bobini (V)			24，36，48，110，220

Elementlar		Model	LC1-D115	LC1-D150	LC1-D170	LC1-D205	LC1-D245
qutb			3	3	3	3/4	3/4
Nominal an'anaviy isitish oqimi (A) AC-1			200	200	200	275	280
Operatsion deb baholangan joriy (A)	380/400V	AC-3 AC-4	115	150	170	205	245
	380/400V	AC-3 AC-4	50	65	70	75	85
	660/690V	AC-3 AC-4	70	90	100	108	115
	660/690V	AC-3 AC-4	25	32	35	38	40
Nominal izolyatsiya kuchlanishi (V AC)			690	690	690	690	690
Boshqariladigan quvvat 3 fazali qafas motori (AC-3)	kVt	380/415V AC 660/690V AC	55	75	75	90	110
Boshqariladigan quvvat 3 fazali qafas motori (AC-3)	kVt	380/415V AC 660/690V AC	80	100	100	110	140
AC bobini (V)			110, 127, 220, 240, 380, 415, 440, 480, 500, 600

Elementlar		Model	LC1-D300	LC1-D410	LC1-D475	LC1-D620
qutb			3/4	3/4	3/4	3/4
Nominal an'anaviy isitish oqimi (A) AC-1			360	430	580	850
Operatsion deb baholangan joriy (A)	380/400V	AC-3 AC-4	300	410	475	620
	380/400V	AC-3 AC-4	124	150	185	188
	660/690V	AC-3 AC-4	190	235	290	360
	660/690V	AC-3 AC-4	60	72	85	170
Nominal izolyatsiya kuchlanishi (V AC)			690	690	690	690
Boshqariladigan 3 fazali quvvat qafas motori (AC-3)	kVt	380/415V AC 660/690V AC	160	200	250	335
Boshqariladigan 3 fazali quvvat qafas motori (AC-3)	kVt	380/415V AC 660/690V AC	220	280	330	450
AC bobini (V)			110, 127, 220, 240, 380, 415, 440, 480, 500, 600
