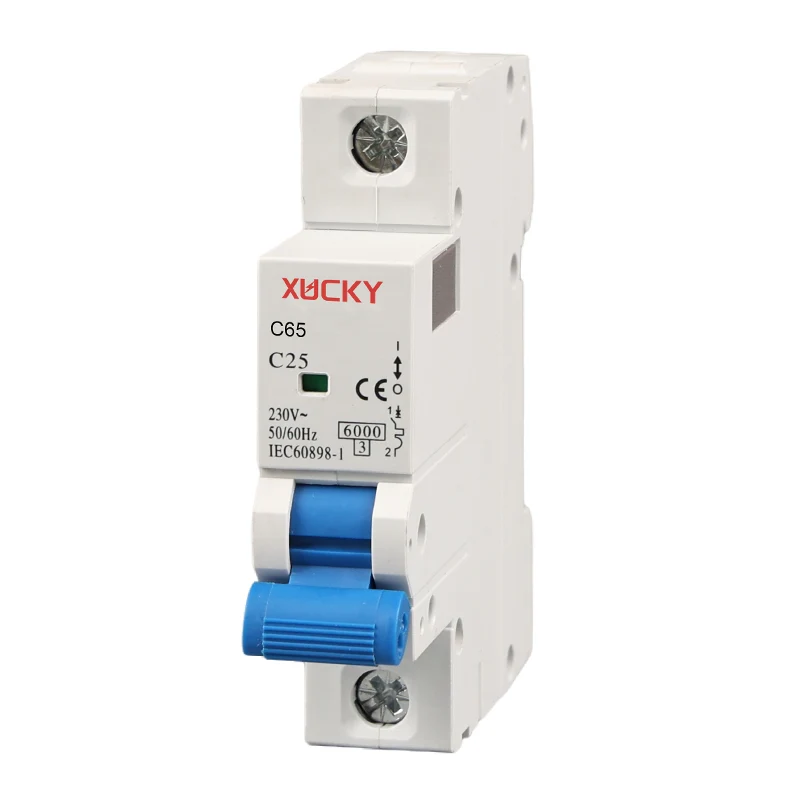

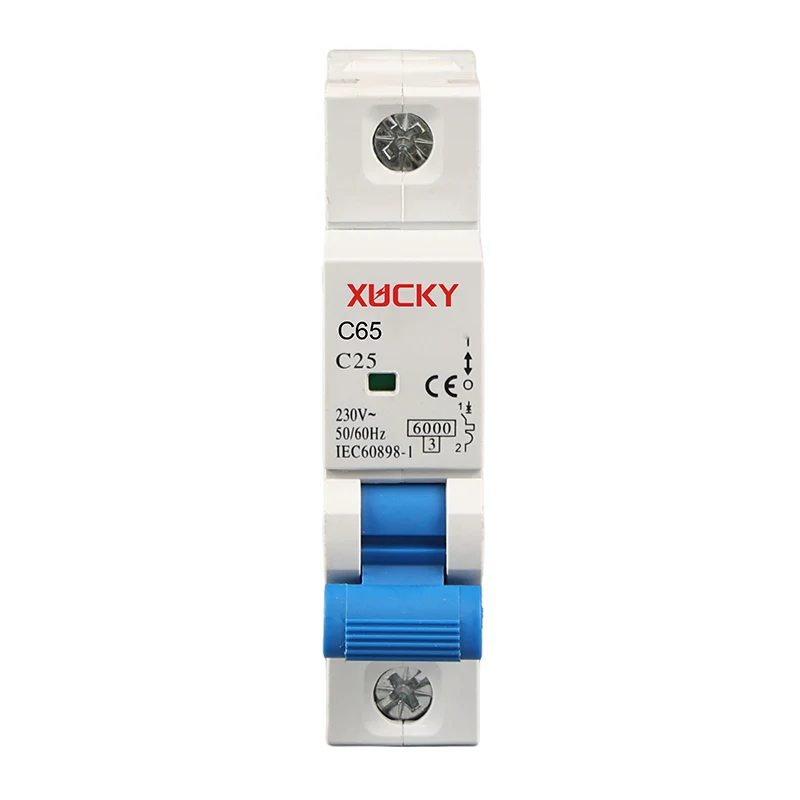

C65 6KA miniatyura o'chirgich (6KA maishiy MCB deb ham ataladi, CHINT NB1-63 ga o'xshash) o'zgaruvchan tok 50Hz, nominal kuchlanish 110V/230/400V, nominal tok 1A, 2A, 3A, 6A,A,16,10,10 uchun ishlatiladi. Haddan tashqari yuk va qisqa tutashuvdan himoya qilish uchun 32A, 40A, 50A, 60A, 63A, shuningdek, kamdan-kam hollarda kontaktlarning zanglashiga olib keladigan oddiy holatlar uchun foydalanish, shuningdek, kontaktlarning zanglashiga olib keladigan kontaktlarning zanglashiga olib keladigan kontaktlarning zanglashiga olib keladigan kaliti sifatida ishlatiladi.
6KA miniatyura o'chirgichi (6KA uy xo'jaligi MCB) sanoat, tijorat, ko'p qavatli va fuqarolik turar joylari va boshqa joylarda qo'llaniladi.
Standartlarga javob bering: GB10963.1, IEC60898-1.
|
Nominal oqim |
0,5A,1A,2A,3A,4A,5A,6A,10A,16A,25A,40A,50A,63A |
|
polyaklar |
1P.2P.3P,4P,1P+N,3P+N |
|
Nominal kuchlanish Ue |
230V/400V |
|
Nominal impulsga chidamli kuchlanish (1,2/50)Uimp |
6kV |
|
Dielektrik sinov kuchlanish At va Ind. Tez-tez . 1 min |
6kV |
|
Buzilish belgisi |
Yashil oyna (uzilgan), qizil oyna (yopiq) |
|
Himoya klassi |
IP20 |
|

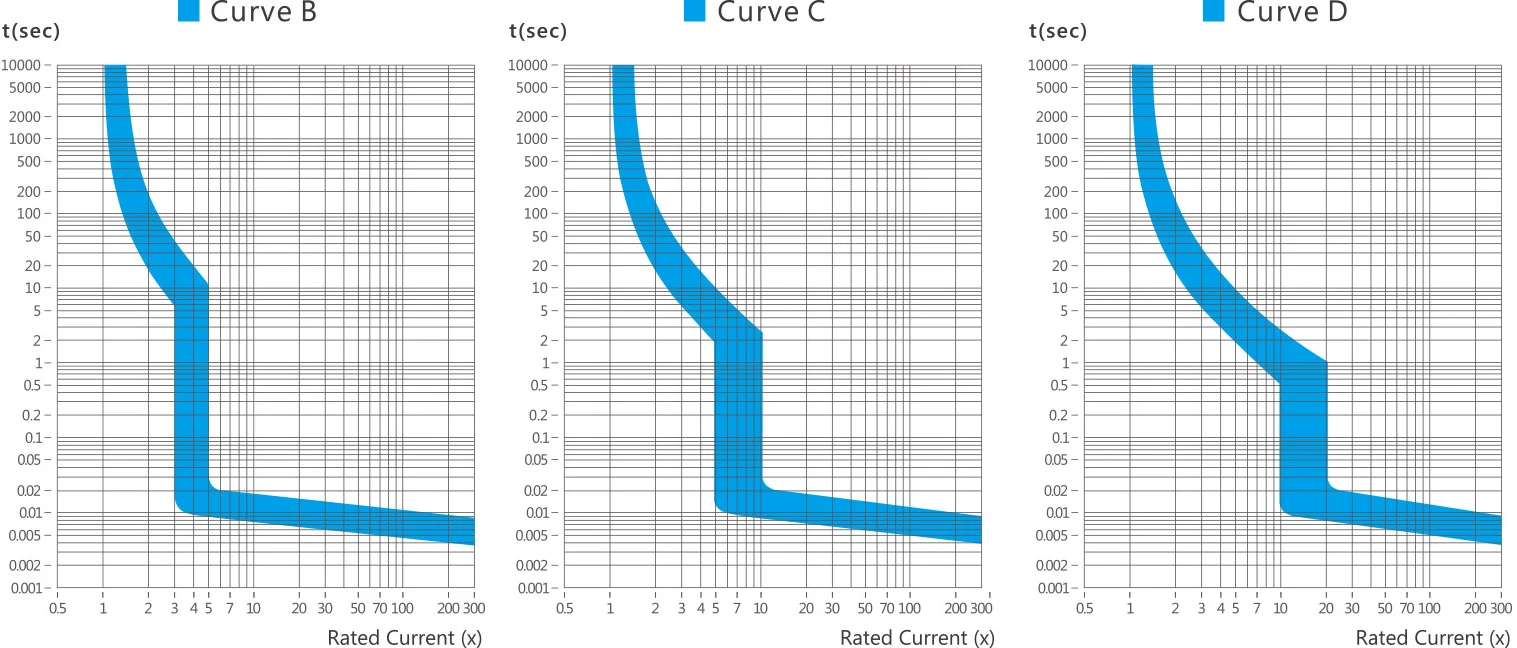

Termo - Magnit chiqarish xarakteristikasi |
B-egri (3-5 dyuym), C-egri (5-10 dyuym), D-egri (10-14 dyuym) |
|
Elektr hayoti |
2000 |
|
Mexanik hayot |
10000 |
|
Termal elementni sozlash uchun mos harorat |
30℃ |
|
Atrof-muhit harorati |
-5~+40℃ |
|
Terminal ulanish turi |
Phillips vintlari |
|
Adapter kabeli |
6-63A 1-25mm² 16-3AWG | 80-125A 8-35mm² 16-2AWG |
|
Siqish momenti |
3,0 N.M |
|
Aksessuarlar bilan birikma Yordamchi kontakt |
|
|
Yordamchi aloqa |
Ha |
|
Signal aloqasi |
Ha |
|
Shunt chiqarish |
Ha |
|
Past kuchlanishni chiqarish |
Ha |
Atrof-muhit harorati 30 daraja benchmark bo'lmaganda, mos yozuvlar tuzatish omili quyidagicha bo'ladi.
|
Atrof-muhit harorati |
-20℃ |
-10℃ |
0℃ |
10℃ |
20℃ |
30℃ |
40℃ |
50℃ |
60℃ |
|
Joriy tuzatish koeffitsienti |
1.25 |
1.2 |
1.15 |
1.10 |
1.05 |
1.00 |
0.95 |
0.90 |
0.85 |
|
Nominal oqim |
Minimal adapter mis sim |
|
6A |
1 MM² / 17AWG |
|
10A |
1,5 MM² / 16AWG |
|
16A |
1,5 MM² / 16AWG |
|
25A |
2,5 MM² / 13AWG |
|
32A |
4 MM² / 11AWG |
|
40A |
6 MM² / 10AWG |
|
50A |
10 MM² / 7AWG |
|
63A |
10 MM² / 7AWG |
O'rnatish uchun Th35-7,5 tipidagi po'latdan o'rnatish relslari ishlatiladi.
